Akyapak Heavy Angle Rolls

No Limit on size… Go up to the largest

AKYAPAK, offers extensive alternatives about big sized profile bending machines too. Our machines are strong and reliable with their ST-52 weld construction body.Minimum flexion causes less deformation, by the help of our machines’ enlarged roll diameters.

By the help of big measurements of bearings, durability and high bending momentum can be obtained. Hydraulic cylinders’ power enables to bend the bigger parts without any difficulty. Practical and universal rollers creates the possibility of easiness about bending various kinds of profiles, and this feature gives the opportunityof being more powerful and firm.

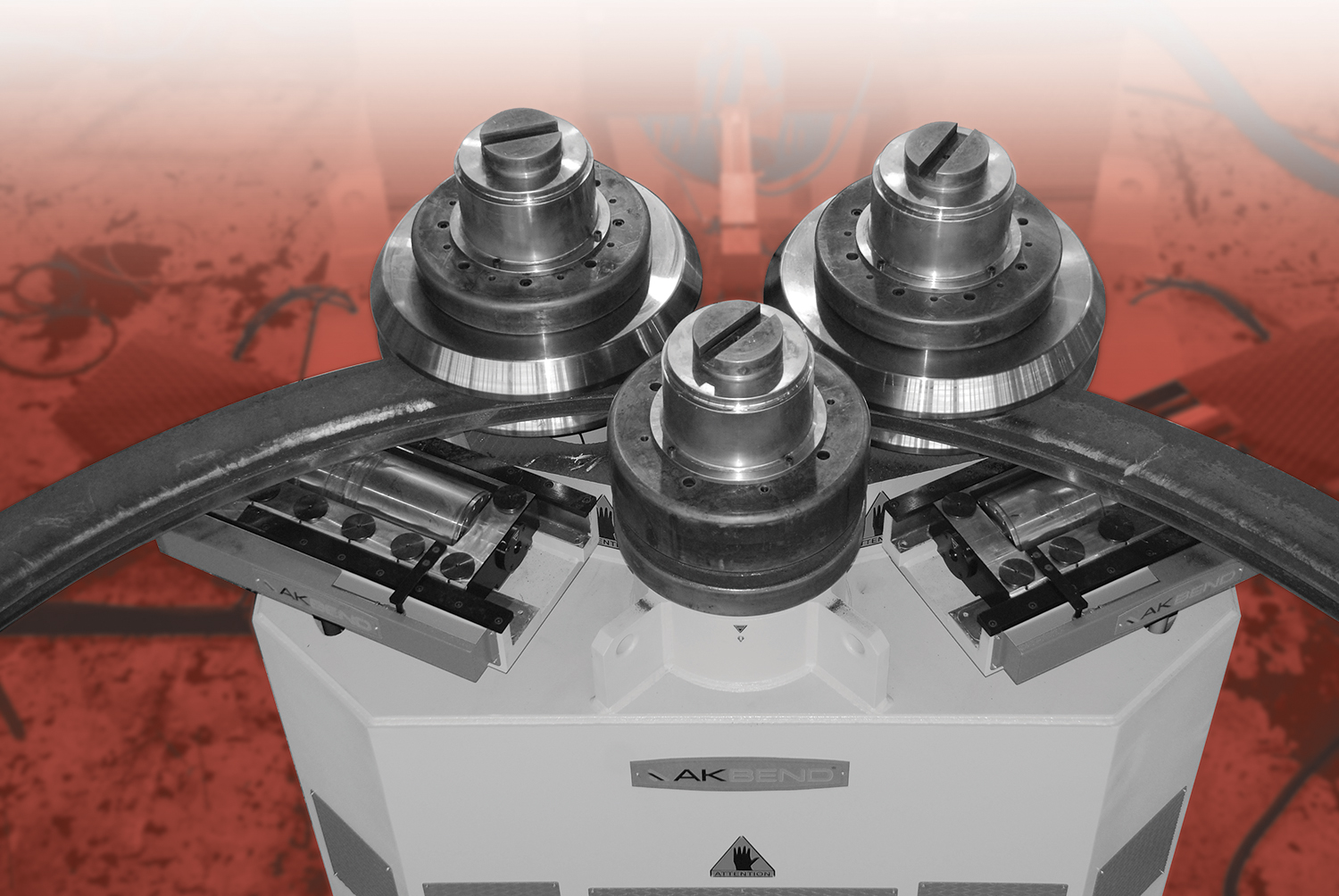

Our Profile Bending Machines are 3 rolls driven. This feature allows to have the possibility of making, the high capacity bending processes, real. Secondly, our 3 Rolls Driven machine minimizes the slip of the materials during the bending process. The two bottom rolls are driven hydraulic and they can maketheir movements independent from each other. Therefore, in comparision with the machines which are driven from the top roll, our machines’ features enhance the ability of operators and give the opportunity to make prebending process on bothedges. Side supporters can move towards three directions, to reduce the deformationsand to facilitate bending processes, especially about angles and spirals.

Compare

Warning: sizeof(): Parameter must be an array or an object that implements Countable in /home/customer/www/artools.com/public_html/wp-content/themes/koda/woocommerce/single-product/meta.php on line 31
Category:

Description

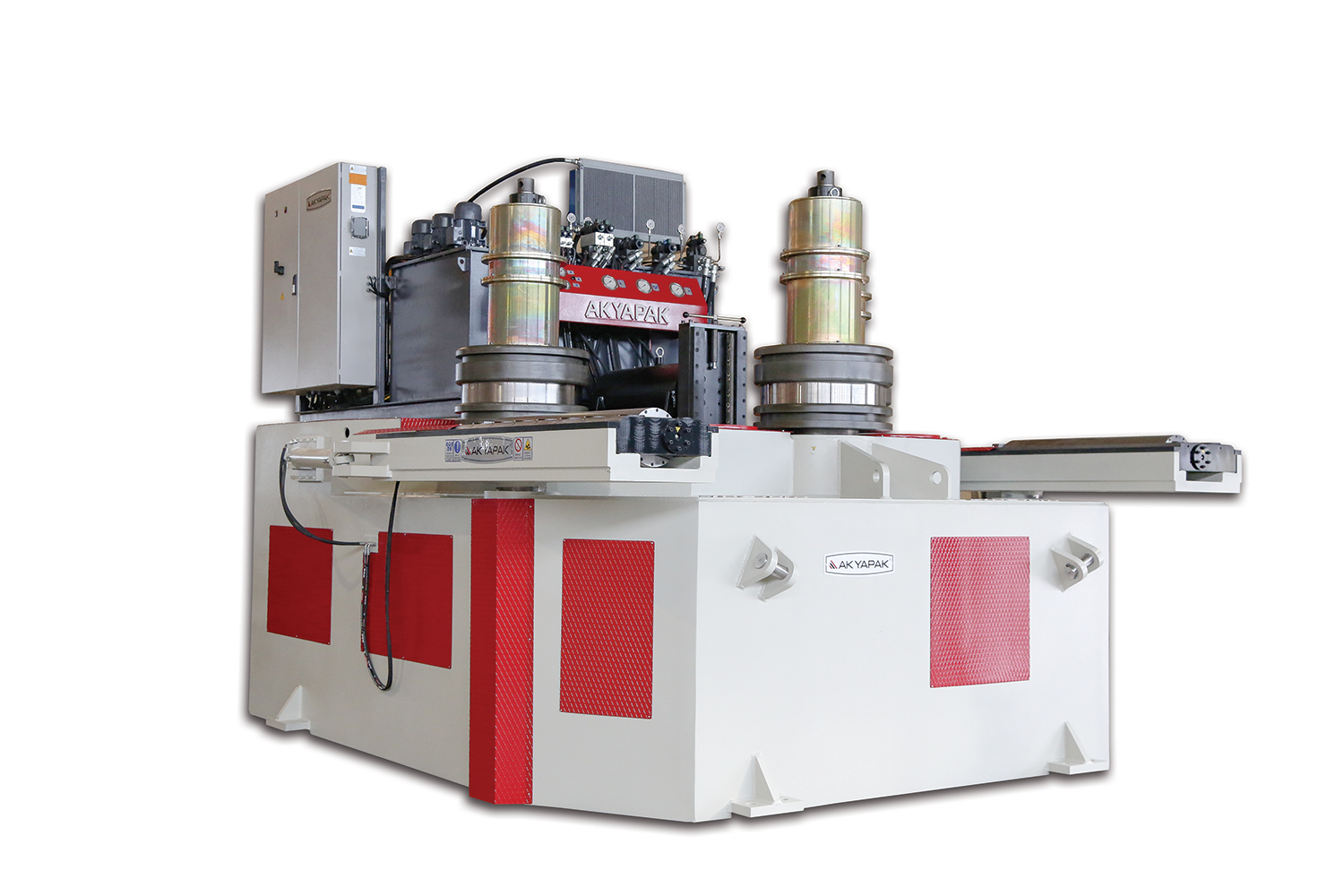

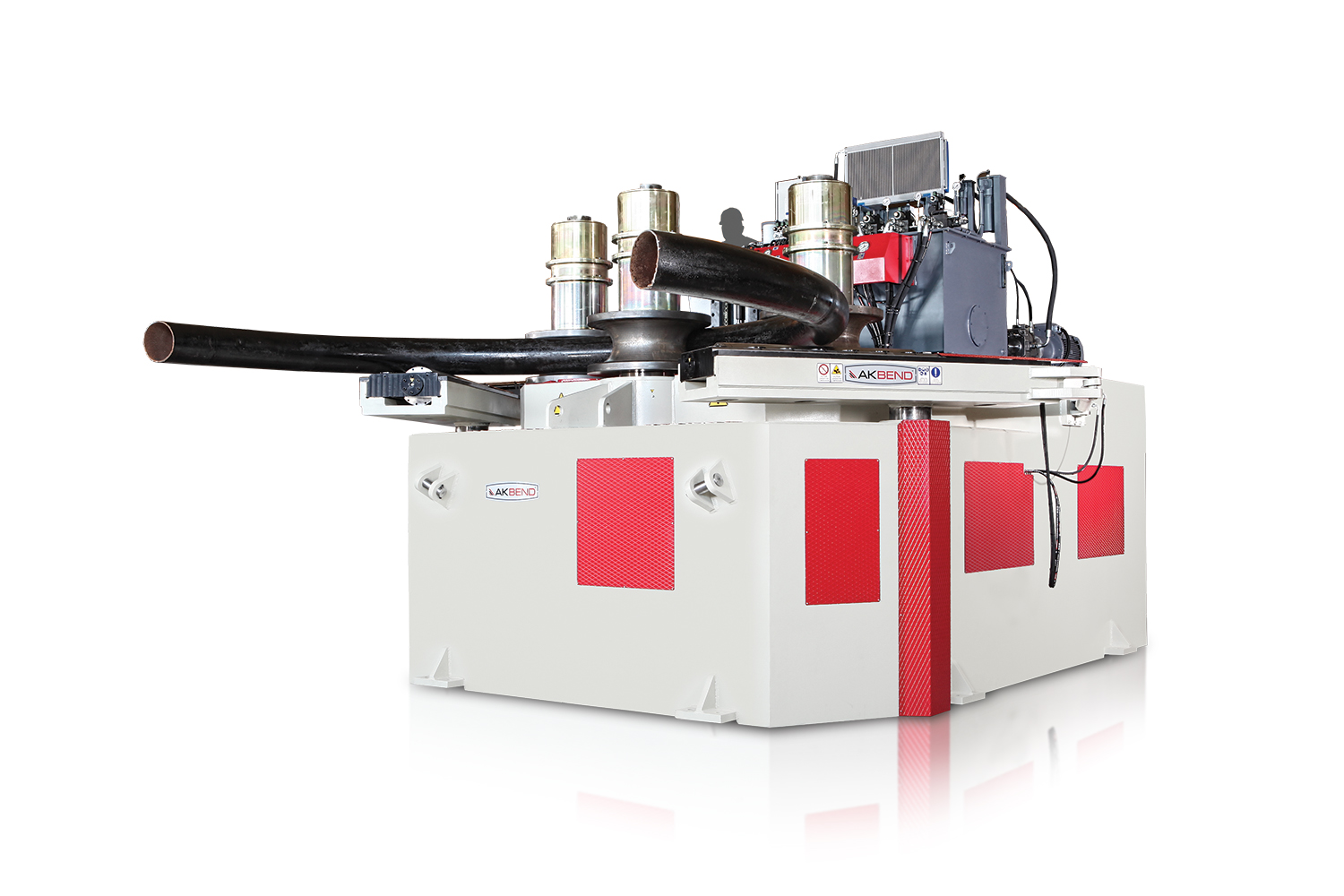

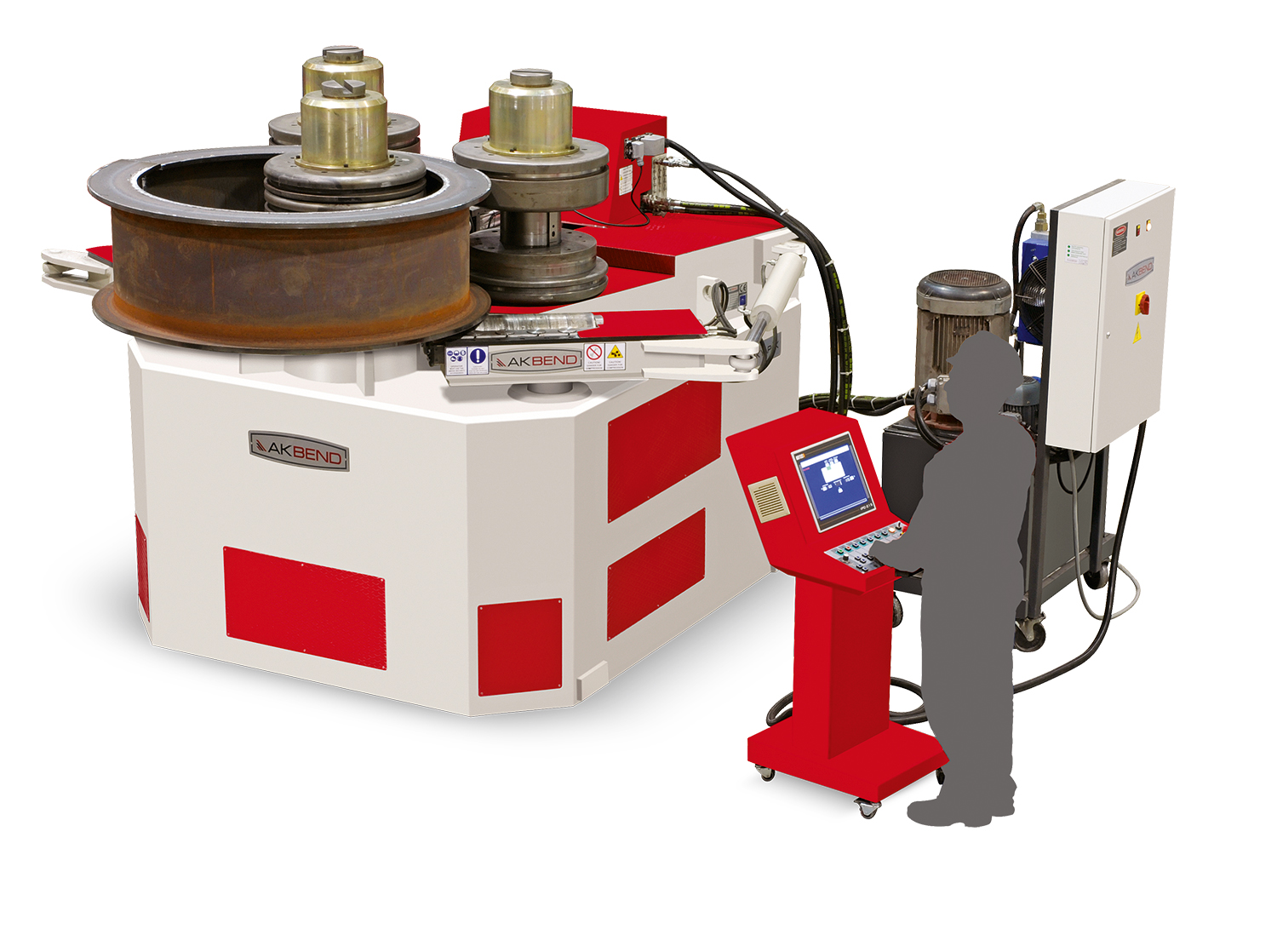

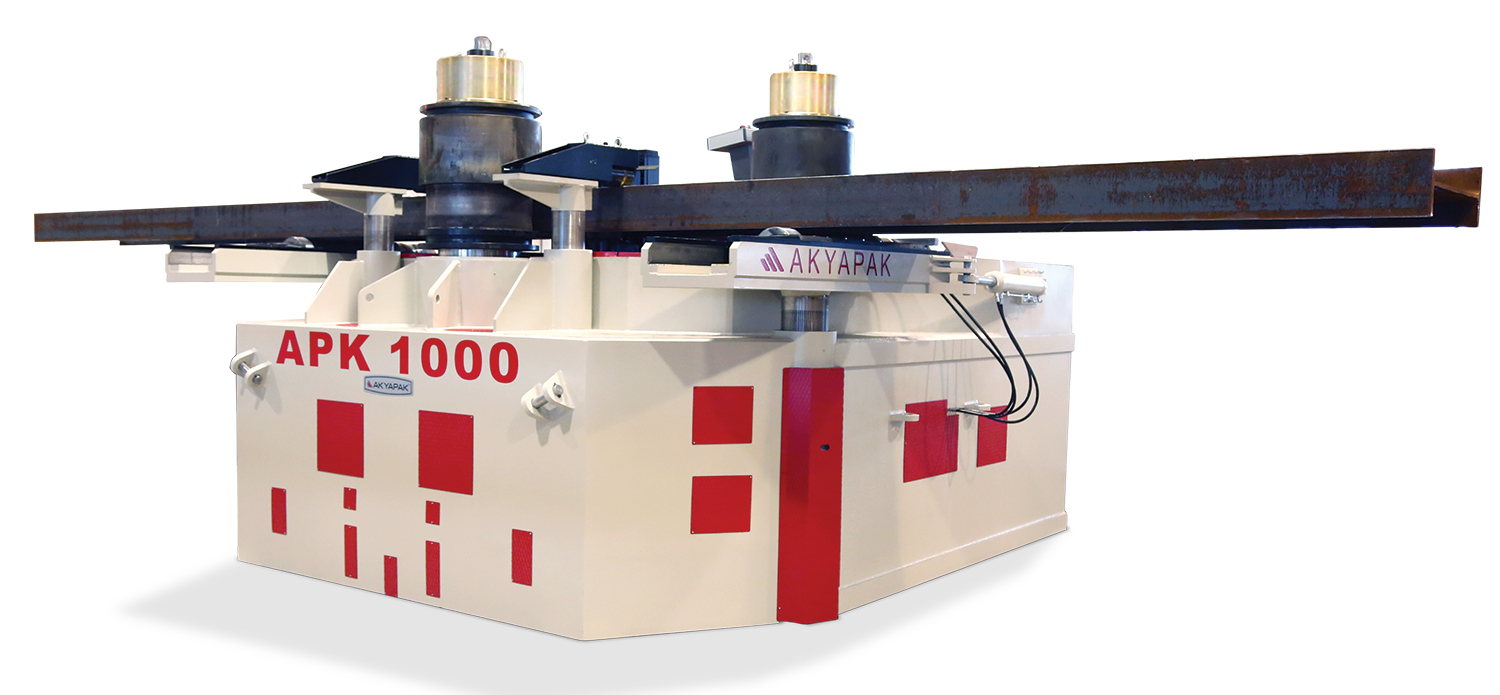

APK 1000, 550, 360, 300, 240, 180

Standart features

  • Welded steel construction (St-52) body
  • Rolls are driven by 3 separate hydraulic motors
  • Infinitely variable speed of rotation
  • Special steel gears
  • Shafts are made of special steel, hardened and grinded
  • Manual lubrication
  • Guide rolls are hydraulically adjustable
  • Lower rolls are hydraulically moveable up and down
  • Infinitely variable speed of rlower rools moves down-up
  • Digital display for lower rolls
  • Seperate and moveable control panel
  • Horizontal working
  • 400 Volt/50-60 Hz
  • AKYAPAK Service assurance
  • Certified by CE, ISO9001 – 2008, TSEK and TURQUM

Optional Fatures

  • Special rolls for tubes, profiles and angles
  • Special tooling system for bending H, I, U profiles
  • Digital display for hydraulic guide rolls
  • NC Playback Control System
  • CNC Graphic Control System
  • Joystickcontrol
  • Motors in variable voltage and frequency
  • Different rotation speeds
